PB 04

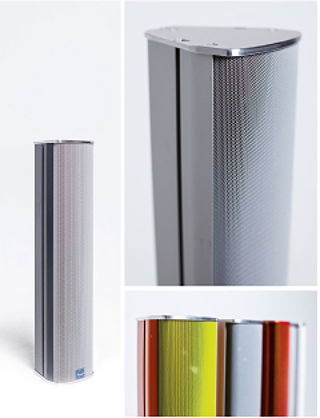

Pan Beam PB 04 is a column speakers with a slim, appealing design. The PB 04 can generate an single beam, to set the focus on a listening area. It is possible to modify the beams by means of various optimizers (max SPL, min side lobes). Operated via a user friendly Windows Software, the connec- tion to the computer is made through a RS 485 network. Over the digital signal processing the vertical and the inclination angle, the volume, sound and delay can be entered and cont- rolled. The Pan Beam PB 04 is equipped with four specially- designed 3.5“ chassis, DSP modules and four digital amplifiers offering maximum performance of 100 watts per channel. A single Pan Beam PB 04 can cover a listening area up to 15 meters, with constant speech intelligibility and sound pressure.


High efficiency, integrated protection circuits, high speech intelligibility even in the most adverse acoustic environ- ments. Sleek and unobtrusive design, remote monitoring, two audio inputs (transformer-balanced)


  • The vertical radiation (opening / angle)
  • 5-band parametric equalizer
  • Volume control
  • Internal delay up to 370 ms
  • Connection to media control possible
  • two independent line inputs with automatic priority switching

For the Pan Beam series, there is a wide range of mounting accessories for fixed installations and mobile applications.
