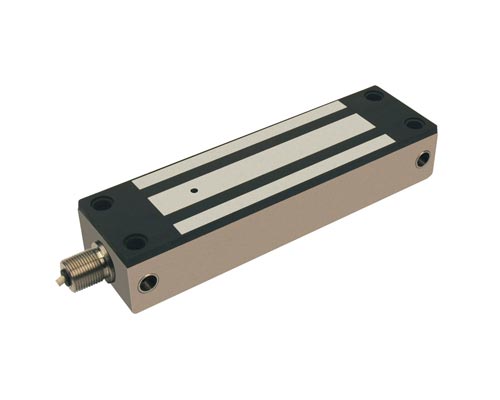

SS-1200-G
- Voltage Input : 12 VDC / 24 VDC
- Current Draw : 12V / 420mA ; 24V / 210mA (±5%)
- Holding Force : Up to 1200 lbs (545 kg)
- Hall Effect Contact : 28 VDC, 0.2A, 5W
- Anti-Rust Surface Treatment : Blue Zinc Plating
- Operating Temperature : 0~55° C ( 32~131° F)
- Operating Humidity : 0~95% ( non condensing)
- Weight ( Magnet) : 2.7 kg (±1%)
- Dimensions :
Magnet – (L)222x(W)62x(T)42 mm
Armature – (L)185x(W)61x(T)16.5 mm
